water pump mechanical john crane seals with Viton and Teflon

Model: 58U 59U
Place of Origin: Zhejiang,China (Mainland)
Standard or Nonstandard: Standard
Style: Mechanical Seal
Material: Others
Brand Name: WJ
Stationary Ring: ceramic/SIC/TC
Rotary Ring: carbon/SIC/TC
Spring&Metal Parts: steel
Secondary Seal: NBR/EPDM/VITON

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:5.0~46.0 USDProduction Capacity:10000 sets/month
Trade Term:FOBPacking:according to your...
Payment Terms:L/C, T/T, WUDelivery Date:30 days
Min. Order:10 Set/Sets
Means of Transport:Ocean

water pump mechanical john crane seals with Viton and Teflon
Features of water pump mechanical john crane seals with Viton and Teflon
1. Model: type 58U 59U
2. Size: 14mm to 100mm
3. Pressure: ≤1Mpa
4. Speed: ≤20m/s
5. Temperature: -40ºC~200ºC

Materials of water pump mechanical john crane seals with Viton and Teflon
1. Stationary Ring: ceramic/SIC/TC
2. Rotary Ring: carbon/SIC/TC
3. Secondary Seal: NBR/EPDM/VITON
4. Spring&Metal Parts: Steel

Note of water pump mechanical john crane seals with Viton and Teflon
O-ring of Stationary ring of type 58U is black, and the material is Viton, that of Rotary ring is the same; but O-ring of type 59U is white and the material is Teflon.

Pictures of water pump mechanical john crane seals with Viton and Teflon

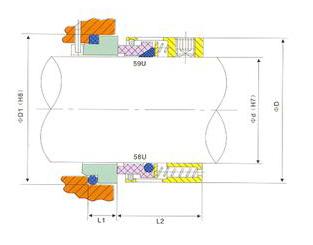

1. the drawing of water pump mechanical john crane seals with Viton and Teflon
2.the size of water pump mechanical john crane seals with Viton and Teflon
ModeldDD1L1L2
WJ58U 59U-141424251223.2
WJ58U 59U-161626271223.2
WJ58U 59U-1818323313.524.2
WJ58U 59U-2020343513.524.2
WJ58U 59U-2222363713.524.2
WJ58U 59U-2424383913.526.9
WJ58U 59U-252539401327.2
WJ58U 59U-2828424312.530.2
WJ58U 59U-303044451230.7
WJ58U 59U-323246481230.7
WJ58U 59U-333347481230.7
WJ58U 59U-353549501230.7
WJ58U 59U-383854561332.2
WJ58U 59U-404056581332.2
WJ58U 59U-434359611332.2
WJ58U 59U-454561631332.2
WJ58U 59U-484864661332.2
WJ58U 59U-5050667013.534.2
WJ58U 59U-5353697313.534.2
WJ58U 59U-5555717513.534.2
WJ58U 59U-5858787813.539.2
WJ58U 59U-6060808013.539.2
WJ58U 59U-6363838313.539.2
WJ58U 59U-6565858513.539.2
WJ58U 59U-6868889013.539.2
WJ58U 59U-7070909214.545.7
WJ58U 59U-7575959714.545.7
WJ58U 59U-80801041051545.2
WJ58U 59U-85851091101545.2
WJ58U 59U-90901141151550.2
WJ58U 59U-95951191201550.2
WJ58U 59U-1001001241251550.2
